Enclosed spaces, such as basements, tunnels, car parking’s, warehouses, and industrial facilities, require efficient ventilation systems to maintain air quality, regulate temperature, and ensure safety. Poor ventilation in these spaces can lead to high concentrations of pollutants, excessive heat accumulation, and even life-threatening situations during fire incidents. Traditional ventilation designs often struggle to address these challenges effectively, leading to inefficiencies and increased operational costs.

Computational Fluid Dynamics (CFD) has emerged as a powerful tool for designing and optimizing ventilation systems in enclosed environments. By simulating airflow, temperature distribution, and pollutant dispersion, CFD helps engineers develop data-driven solutions that enhance air circulation, reduce energy consumption, and improve safety standards.

In this blog, we explore the critical role of CFD in enclosed space ventilation, backed by real-world case studies where advanced simulation techniques have led to significant improvements in air distribution and environmental control.

Role of CFD in Enclosed Space Ventilation Design

Computational Fluid Dynamics (CFD) plays a crucial role in optimizing ventilation systems for enclosed spaces by providing detailed insights into airflow patterns, temperature distribution, and contaminant movement. Unlike traditional trial-and-error approaches, CFD enables engineers to simulate various scenarios and design efficient ventilation strategies before implementation.

          1. Airflow Analysis and Optimization

          2. Temperature Regulation and Heat Dissipation

          3. Contaminant and Pollutant Dispersion

          4. Smoke and Fire Mode Analysis

          5. Energy Efficiency and Cost Reduction

CFD Solutions for Enclosed Space Ventilation: Our Expertise at Analyzer CAE Solutions

At Analyzer CAE Solutions, we specialize in Computational Fluid Dynamics (CFD) simulations to optimize ventilation systems in enclosed spaces. Proper ventilation is essential for maintaining air quality, temperature control, and safety, especially in environments where poor airflow can lead to pollutant buildup, thermal discomfort, and fire hazards.

Our experience includes conducting CFD-based ventilation analysis for various industries, helping clients enhance air circulation, pollutant dispersion, and energy efficiency. By simulating airflow patterns, temperature distribution, and contaminant movement, we provide data-driven solutions that improve ventilation system performance. This approach ensures optimal air exchange rates, reduced energy consumption, and compliance with safety regulations.

Analyzer CAE Solutions has successfully executed a wide range of projects across various industries, demonstrating our expertise in advanced engineering analysis and cutting-edge CFD solutions. Our work reflects a strong commitment to efficiency, safety, and innovation in enclosed space ventilation.

---

Warehouse Ventilation Optimization

A Computational Fluid Dynamics (CFD) study was conducted to assess the ventilation and fire safety performance in a multi-story enclosed space. The objective was to analyse air distribution, pollutant dispersion, and smoke evacuation under different operational scenarios.

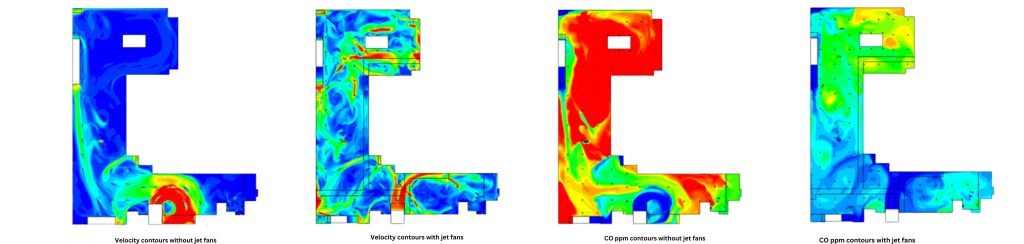

The ventilation mode simulation evaluated airflow patterns, identifying potential dead zones where stagnant air could accumulate. The study ensured that the existing ventilation system effectively distributed fresh air, maintaining optimal indoor air quality. The analysis included assessing supply and exhaust configurations, flow rates, and velocity profiles at different heights to verify compliance with industry standards.

In the fire mode simulation, a fire scenario was modeled to assess smoke movement and clearance times. The system’s ability to manage temperature rise, carbon dioxide (CO₂) levels, and visibility was analysed. The results confirmed that the ventilation strategy effectively removed smoke within a safe timeframe, maintaining temperatures and air quality within acceptable limits.

The study demonstrated that a well-designed ventilation system enhances safety, minimizes health risks, and optimizes energy efficiency in enclosed environments. By leveraging CFD simulations, ventilation strategies can be refined to ensure regulatory compliance and improved occupant safety.

Conclusion

1. Effective Ventilation Performance: The analysis confirmed that the airflow distribution within the warehouse is optimized, preventing stagnant zones and ensuring uniform fresh air circulation across all floors.
2. Reliable Fire Safety Measures: The smoke evacuation system efficiently managed smoke dispersion, temperature rise, and CO concentration, ensuring compliance with safety regulations and maintaining clear visibility during fire scenarios.
3. Energy Optimization & System Efficiency: The study provided insights into enhancing ventilation efficiency by optimizing jet fan placement and operational strategies, reducing overall energy consumption while maintaining effective pollutant and heat removal.

---

Car Park Ventilation for CO and Smoke Control

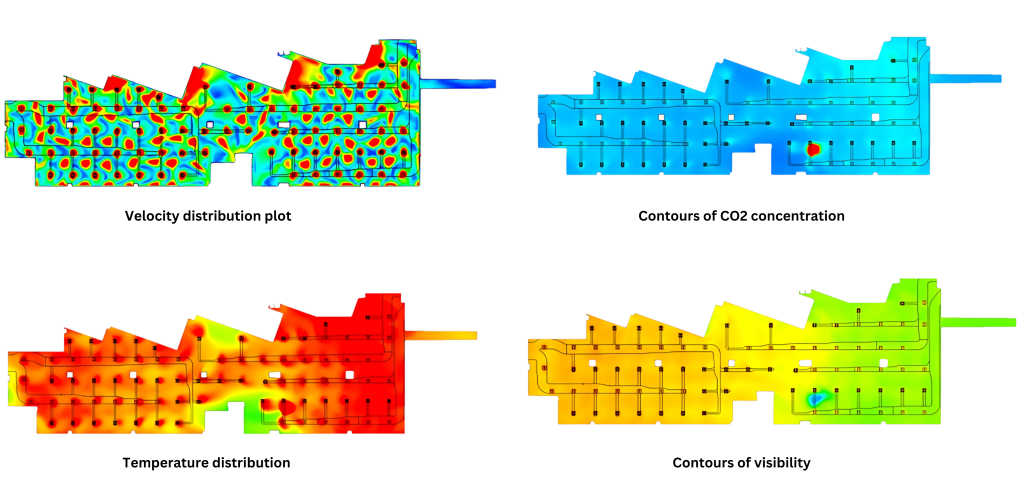

A Computational Fluid Dynamics (CFD) study was conducted to evaluate the effectiveness of the ventilation system in an enclosed car park, focusing on air quality, pollutant dispersion, and fire safety. The analysis aimed to optimize jet fan placement and improve the overall airflow distribution to maintain safe CO levels and ensure effective smoke evacuation in case of a fire.

In the ventilation mode, simulations were performed to assess airflow patterns, identify stagnant zones, and regulate CO concentration. Optimized jet fan placement significantly improved air circulation, preventing the buildup of pollutants and ensuring compliance with air quality standards. The control sequence for jet fans was designed to activate based on real-time CO sensor readings, reducing energy consumption while maintaining safe conditions.

For the fire mode, a fire scenario was simulated to evaluate smoke movement and heat dissipation. The system’s efficiency was validated based on the time required for smoke clearance and the maintenance of visibility levels critical for emergency evacuation. The results confirmed that strategic ventilation design effectively managed temperature rise, CO₂ levels, and smoke dispersion, ensuring a safer environment.

The study demonstrated how CFD-driven optimization enhances air circulation, energy efficiency, and emergency preparedness in enclosed parking facilities, contributing to better safety standards and regulatory compliance.

Conclusion

1. Optimized Air Quality Management: The study confirmed that strategic jet fan placement effectively reduces CO concentration and stagnant zones, ensuring proper airflow and maintaining a safe environment.
2. Enhanced Fire Safety Compliance: The fire mode simulation demonstrated that the ventilation system efficiently clears smoke within the required timeframe, maintaining visibility and ensuring safe evacuation during emergencies.
3. Energy-Efficient Ventilation Strategy: The sensor-based jet fan activation minimizes energy consumption while maintaining air quality, offering a cost-effective and sustainable ventilation solution.

---

Tunnel Ventilation for Airflow Efficiency

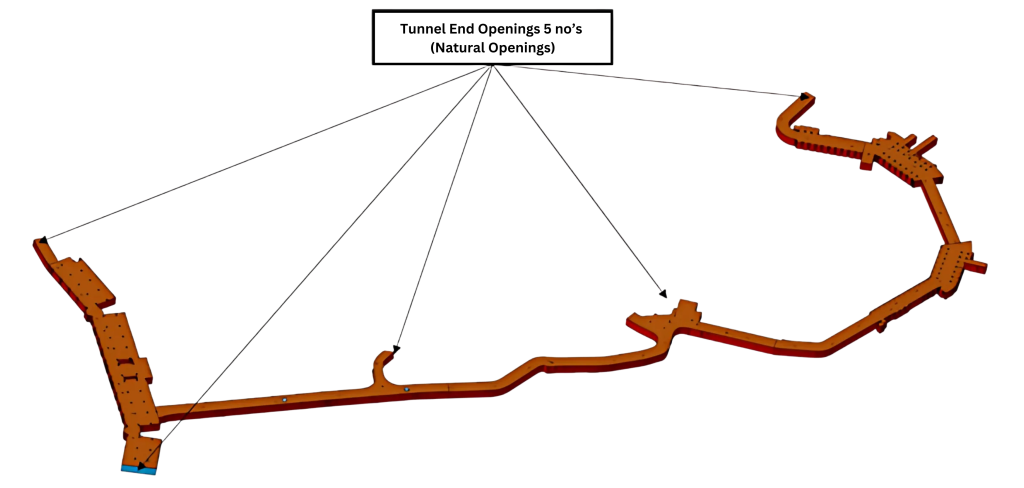

A Computational Fluid Dynamics (CFD) analysis was conducted to evaluate and optimize the ventilation performance in an enclosed utility tunnel. The objective was to ensure efficient airflow distribution, minimize stagnant zones, and maintain acceptable air quality levels.

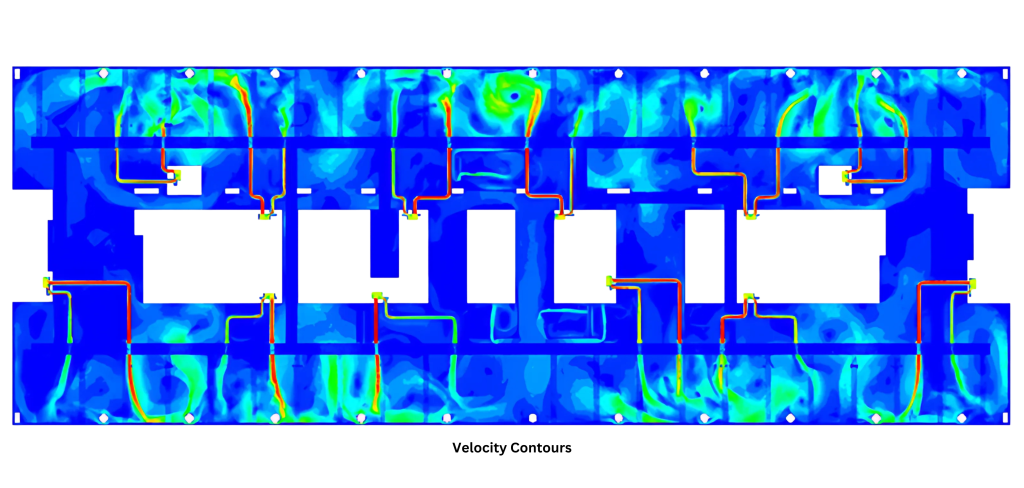

The study focused on ventilation mode, where CFD simulations analysed airflow patterns, velocity distribution, and the impact of jet fan placement. The presence of low-velocity dead zones was identified, which could lead to air stagnation, Odor formation, and discomfort for occupants. By optimizing the number and placement of jet fans, the airflow was improved, enhancing fresh air circulation and pollutant removal.

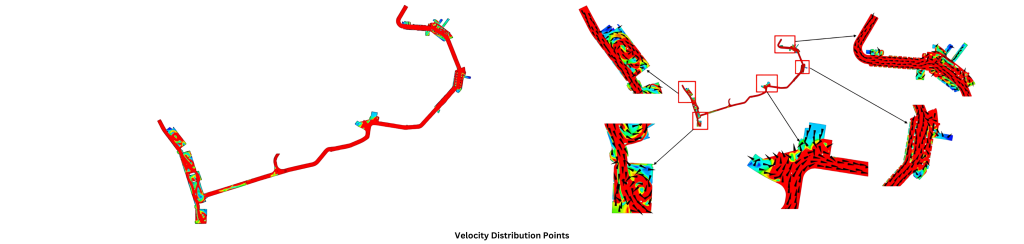

Key parameters such as air velocity, pressure distribution, and pollutant dispersion were evaluated to ensure compliance with ventilation and safety standards. The results demonstrated that the optimized ventilation system effectively eliminated stagnant zones, improved air quality, and maintained comfortable airflow conditions throughout the tunnel.

The analysis concluded that strategic jet fan placement and airflow optimization play a crucial role in enhancing tunnel ventilation efficiency. CFD-based assessments provide data-driven solutions for improving air distribution, energy efficiency, and compliance with industry guidelines, ensuring a safer and more comfortable environment in enclosed tunnel spaces.

Conclusion

1. Optimized Airflow Distribution: The CFD analysis confirmed that strategic jet fan placement effectively eliminates stagnant zones, ensuring uniform airflow and minimizing suffocation risks in the tunnel.
2. Improved Ventilation Efficiency: The study demonstrated that optimized fan arrangements enhance fresh air circulation, reducing Odor formation and maintaining air quality within recommended limits.
3. Compliance with Safety Standards: The final ventilation design meets industry guidelines by maintaining airflow velocities above the required thresholds, ensuring a safe and comfortable environment.
4. Energy-Efficient System Performance: The optimized configuration reduces unnecessary energy consumption, enhancing the overall efficiency and operational sustainability of the ventilation system.

---

Industrial Plant Ventilation Optimization

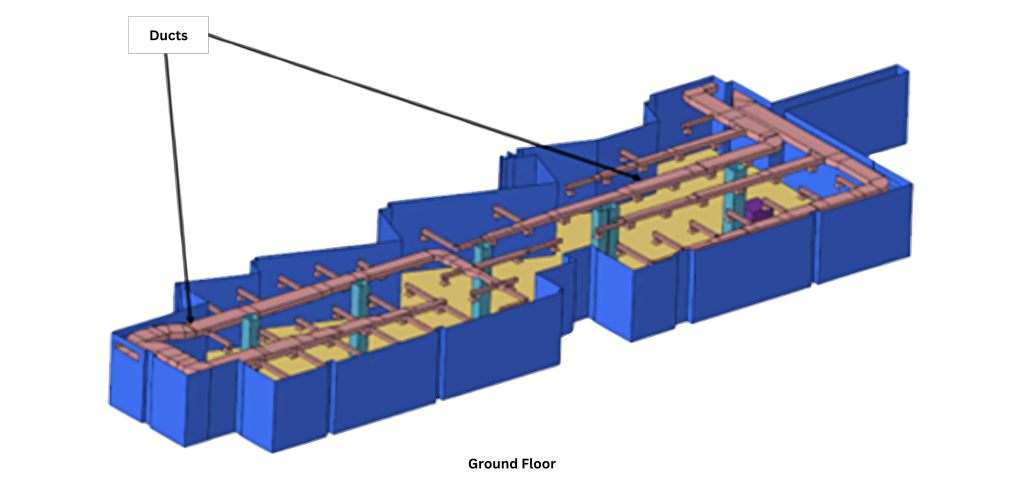

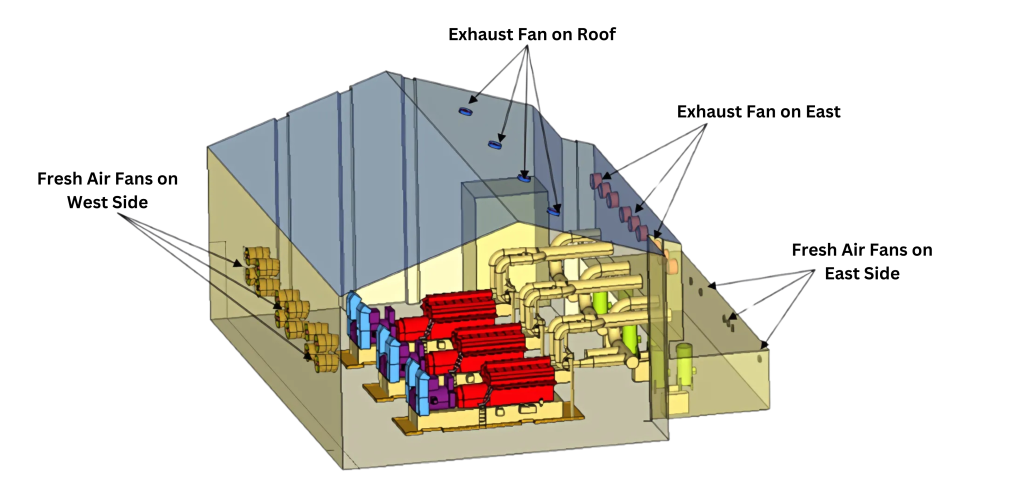

A Computational Fluid Dynamics (CFD) study was conducted to evaluate and optimize the ventilation system for an enclosed generator hall. The primary objective was to assess airflow distribution, heat dissipation, and temperature control to ensure efficient cooling of critical equipment, including engines and alternators.

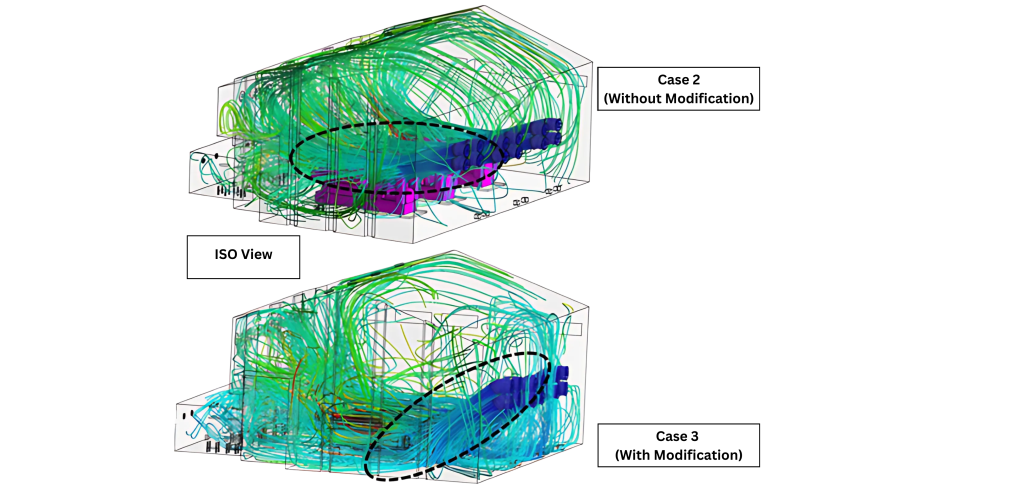

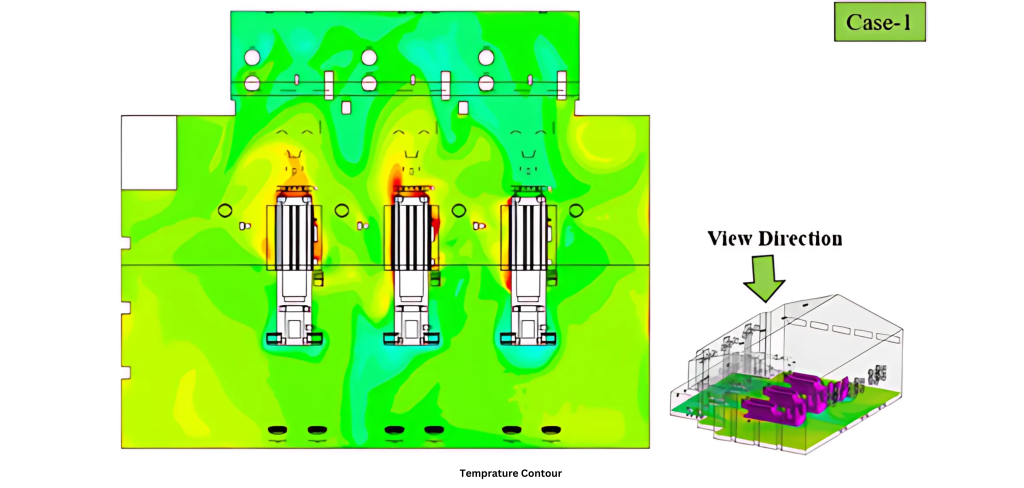

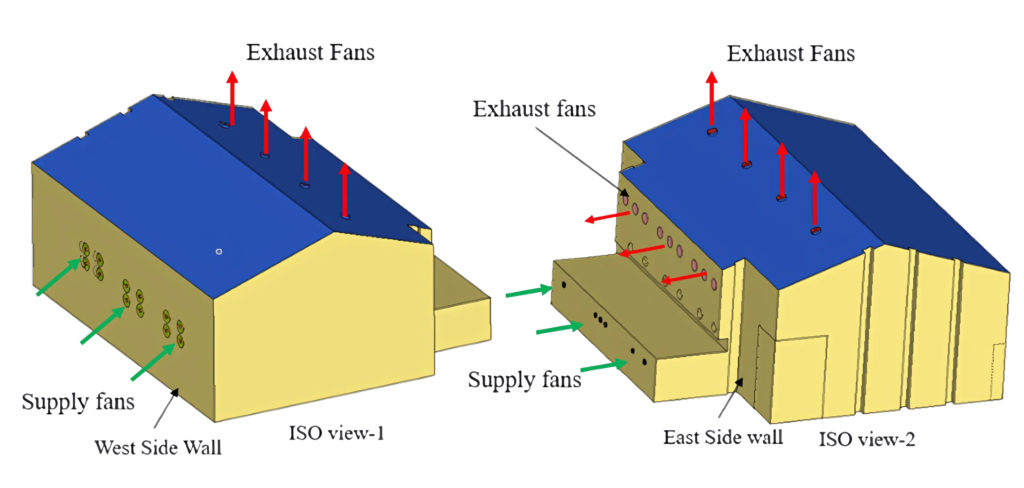

The study analysed multiple scenarios, focusing on how supply and exhaust fan placement impacted air circulation and heat buildup. The base case simulations revealed high temperature zones near the alternator and engine bodies, indicating insufficient cooling due to inadequate airflow distribution. Adjustments were made by modifying the supply fan duct angles, improving airflow direction towards heat-sensitive components.

Results from the modified design showed a significant reduction in localized overheating, ensuring that the alternator and engine remained within safe operating temperature limits. The improved ventilation strategy also minimized air stagnation, optimizing overall cooling efficiency.

The study highlights the importance of strategic ventilation design in enclosed industrial environments. By leveraging CFD simulations, airflow paths can be optimized to enhance thermal management, operational reliability, and energy efficiency, ensuring that ventilation systems effectively support equipment performance while maintaining safety and regulatory compliance.

Conclusion

1. Optimized Airflow Distribution: The study confirmed that adjusting supply fan duct angles significantly improved airflow direction, reducing high-temperature zones around critical equipment and enhancing overall cooling efficiency.
2. Enhanced Equipment Performance & Safety: Proper ventilation design ensured that engines and alternators remained within safe operating temperature limits, preventing overheating-related failures and improving system reliability.
3. Energy-Efficient Ventilation Strategy: The CFD analysis helped refine fan placement and air circulation, minimizing stagnant zones and optimizing ventilation performance, leading to better energy utilization and compliance with industry standards.

---

CFD Analysis for Office HVAC System

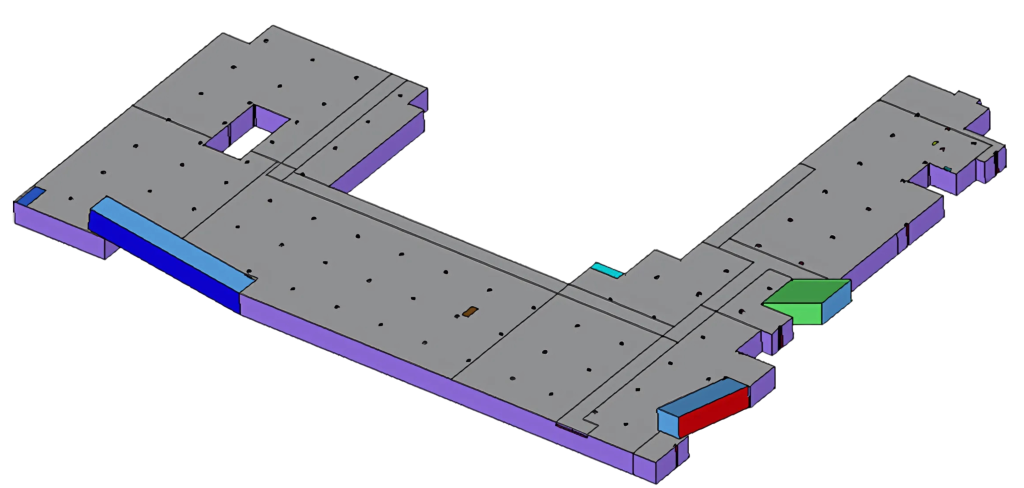

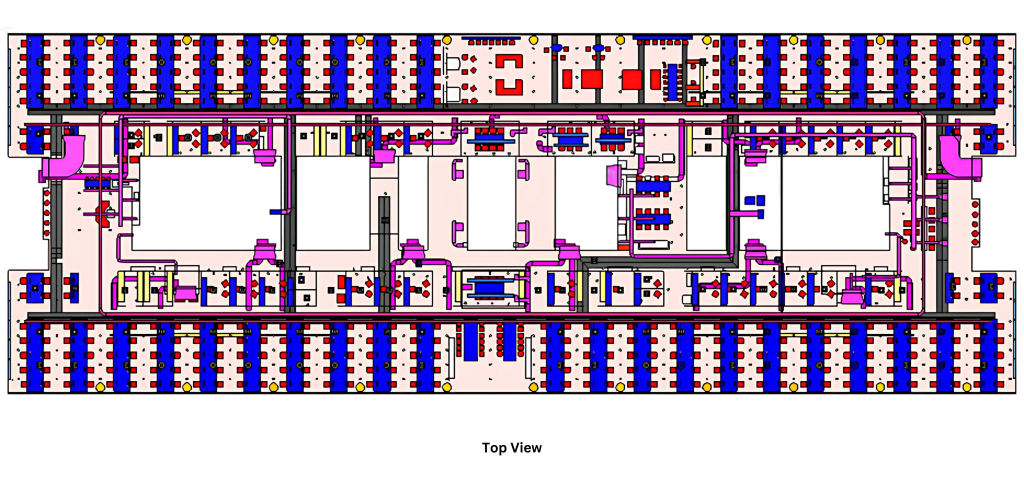

A Computational Fluid Dynamics (CFD) simulation was conducted to evaluate the efficiency of an underfloor HVAC system in an office space. The study focused on analysing air distribution, temperature uniformity, and pressure variations to ensure optimal indoor comfort and energy efficiency.

The airflow analysis assessed the performance of swirl diffusers, motorized dampers, and supply ducts, identifying variations in flow rates across different office zones. The simulation revealed non-uniform airflow distribution in some areas due to the asymmetric design of air handling unit (AHU) ducts, leading to deviations in expected flow rates.

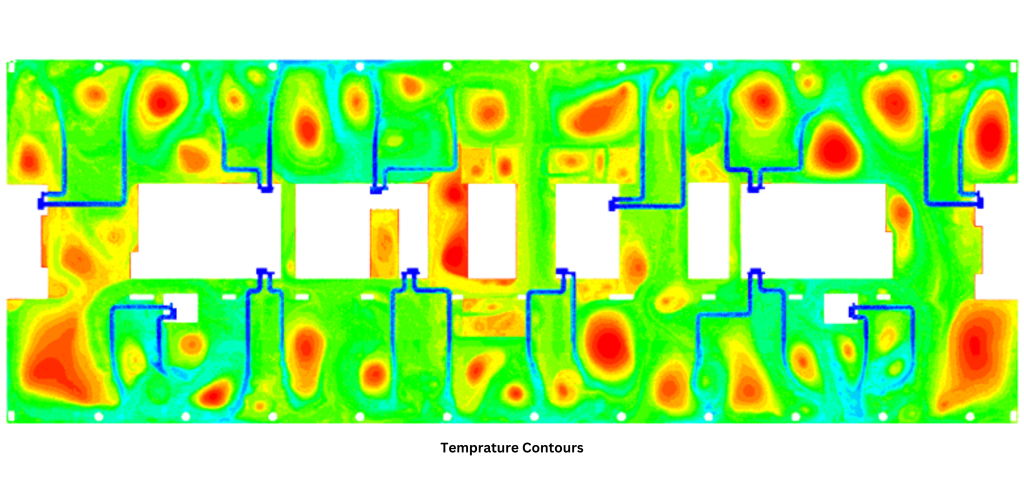

The temperature analysis examined the thermal performance of the system, ensuring that conditioned air effectively reached all workspaces. Results indicated slight temperature variations at different diffuser and grille outlets, highlighting areas for potential HVAC optimization.

The pressure drop assessment provided insights into system efficiency, identifying regions of high resistance that could impact airflow performance. The study recommended adjustments in ducting and diffuser placement to enhance ventilation uniformity and minimize energy losses.

Overall, the CFD analysis demonstrated how optimized underfloor HVAC systems improve air circulation, thermal comfort, and energy efficiency in office environments. By leveraging CFD simulations, ventilation strategies can be refined to enhance occupant comfort and operational performance.

Conclusion

1. Improved Air Distribution: The study highlighted variations in airflow rates across different office zones, emphasizing the need for optimized ducting and diffuser placement to achieve uniform air distribution.
2. Enhanced Thermal Comfort: While the HVAC system maintained acceptable temperature levels, minor variations at diffuser and grille outlets suggested potential refinements to improve occupant comfort.
3. Optimization for Energy Efficiency: The analysis identified pressure drop variations due to non-uniform airflow, indicating opportunities to enhance system design for reduced energy consumption and improved performance.

---

Airport HVAC Efficiency Assessment

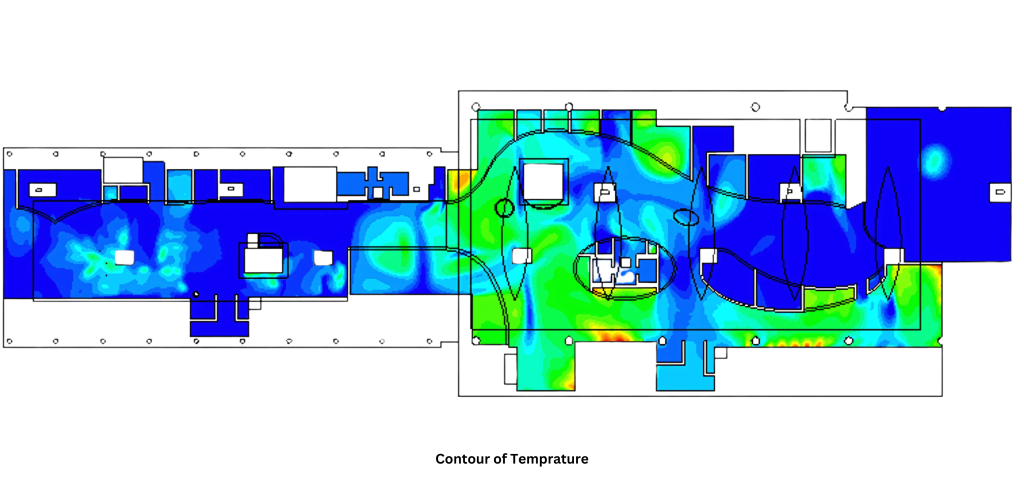

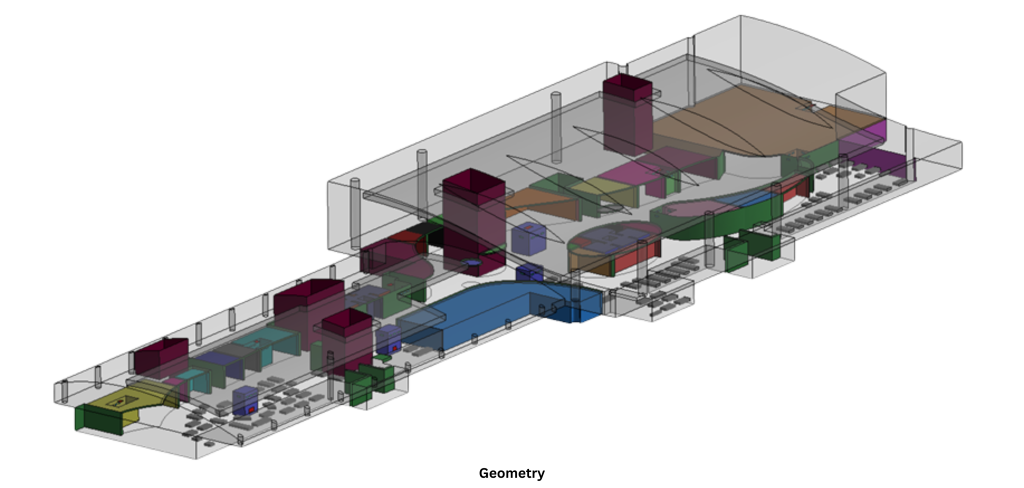

A Computational Fluid Dynamics (CFD) study was conducted to evaluate the ventilation efficiency and thermal comfort within an international airport terminal. The objective was to assess airflow distribution, temperature control, and occupant comfort under different operational conditions.

The temperature analysis revealed that most areas within the occupied zones maintained a comfortable thermal range of 20°C to 26°C, ensuring passenger comfort. However, specific regions, particularly within certain retail areas, experienced lower temperatures below 20°C, which could impact comfort levels for occupants in those spaces.

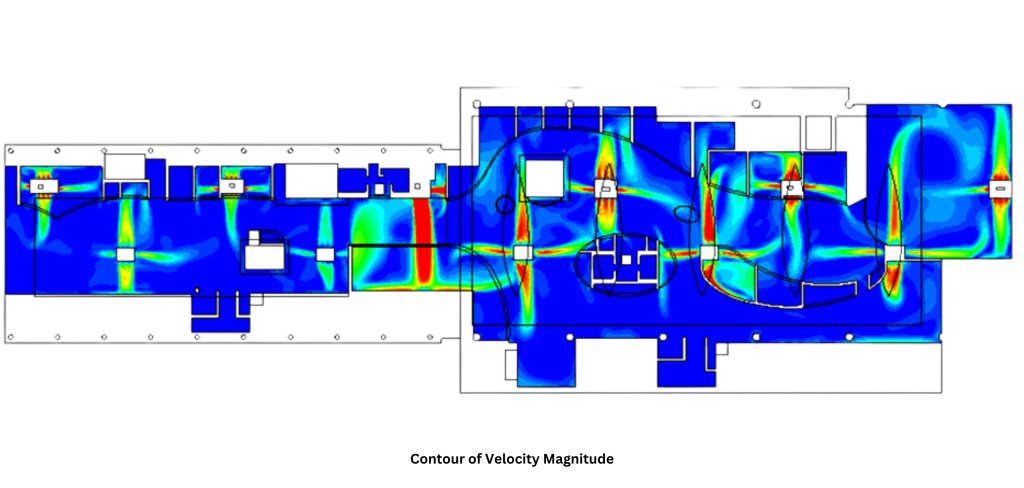

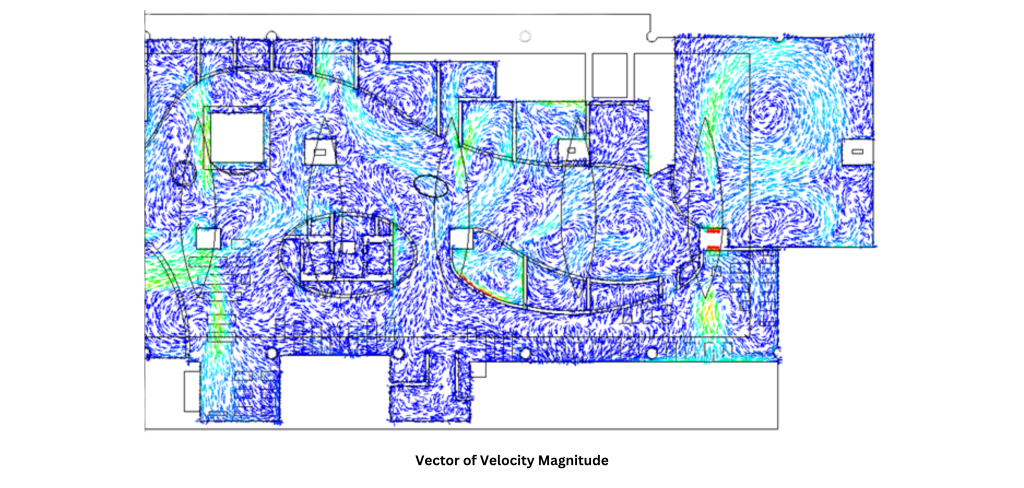

The airflow assessment examined the velocity distribution at different heights, identifying zones where airspeeds were above 1 m/s, particularly near Air Handling Unit (AHU) outlets. While most areas remained within the recommended comfort range, localized high-velocity regions indicated potential discomfort, requiring design refinements.

The findings from the CFD study provided valuable insights into optimizing the airport’s HVAC system, ensuring efficient air circulation, temperature regulation, and energy efficiency. Recommendations included adjusting airflow rates, modifying AHU outlet positioning, and implementing additional ventilation controls to enhance thermal comfort and system performance while maintaining energy-efficient operations.

Conclusion

1. Optimized Thermal Comfort: The analysis confirmed that most passenger areas-maintained temperatures within the ideal comfort range of 20°C to 26°C. However, certain retail spaces experienced lower temperatures, requiring adjustments for improved occupant comfort.
2. Balanced Airflow Distribution: While general airflow patterns were effective, localized high-velocity zones near AHU outlets exceeded 1 m/s, potentially causing discomfort. Optimizing air distribution strategies can help mitigate this issue.
3. Energy-Efficient HVAC Performance: The study provided insights into enhancing airflow efficiency, reducing unnecessary energy consumption while ensuring consistent temperature control and ventilation performance across the terminal.

---

Why Choose Analyzer CAE Solutions for CFD-Based Ventilation Analysis?

At Analyzer CAE Solutions, we specialize in high-precision Computational Fluid Dynamics (CFD) simulations to optimize ventilation systems across diverse industries. Our expertise in airflow analysis, thermal management, and pollutant dispersion ensures efficient, safe, and energy-optimized ventilation solutions for enclosed spaces.

What Sets Us Apart?

✔ Proven Industry Expertise – With a strong track record of delivering CFD solutions for airports, warehouses, industrial plants, tunnels, and commercial buildings, we understand the complexities of enclosed space ventilation.

✔ Advanced Simulation Techniques – We leverage cutting-edge CFD tools to analyse airflow patterns, temperature distribution, and smoke evacuation, ensuring optimal system performance.

✔ Customized & Data-Driven Solutions – Every project is unique, and we tailor our analyses to meet specific ventilation challenges, regulatory requirements, and energy efficiency goals.

✔ Regulatory Compliance & Safety Assurance – Our simulations help clients achieve compliance with industry standards, improving occupant comfort, fire safety, and air quality management.

✔ Energy Efficiency & Cost Savings – By optimizing fan placement, air handling unit (AHU) performance, and ventilation layouts, we help businesses reduce energy consumption while maintaining superior air circulation.

With a commitment to innovation, accuracy, and efficiency, Analyzer CAE Solutions is your trusted partner in delivering high-performance CFD solutions for enclosed space ventilation.
